Quick Answer: Most EZ curl bars weigh between 10 and 35 lbs (4.5–16 kg). A standard EZ bar with 1-inch sleeves weighs 10–15 lbs. An Olympic EZ bar with 2-inch rotating sleeves weighs 18–25 lbs. Rackable EZ bars run 30–35 lbs, and fixed-weight EZ bars range from 10–110 lbs.
Key Takeaways
- EZ curl bars are not standardized — two bars that look identical can differ by 5–10 lbs depending on brand, length, and sleeve construction.
- The most common EZ bar in commercial gyms is an Olympic model weighing 18–25 lbs (8–11 kg) with 2-inch rotating sleeves.
- Rackable EZ bars are longer (70–75 inches) and heavier (30–35 lbs) than standard gym curl bars.
- Bar weight on curls makes up 40–55% of your total load, so a 5 lb error compounds fast in your training log.
- If your bar has no label, you can identify its type in seconds by checking sleeve diameter and total length.
Unlike a standard Olympic barbell — which always weighs 45 lbs (20 kg) — EZ curl bars have no universal weight. The number changes based on the bar type, sleeve construction, shaft thickness, and manufacturer. That variation matters more on curls than most people expect.
On a heavy squat, miscounting the bar by 5 lbs barely registers. On a 45 lb curl, that same 5 lbs represents over 10% of your total load. If you’re trying to progressively overload your curls week to week, you need the actual number.
Quick Reference Table
| Bar Type | Weight Range (lbs) | Weight Range (kg) | Sleeve Diameter | Typical Length |
|---|---|---|---|---|
| Standard EZ Curl Bar | 10–15 lbs | 4.5–7 kg | 1 inch | 45–48 inches |
| Olympic EZ Curl Bar | 18–25 lbs | 8–11 kg | 2 inches | 47–55 inches |
| Super Curl Bar | 17–25 lbs | 7.7–11 kg | 2 inches | 47–48 inches |
| Rackable EZ Curl Bar | 30–35 lbs | 14–16 kg | 2 inches | 70–75 inches |
| Fixed Weight EZ Curl Bar | 10–110 lbs | 4.5–50 kg | N/A (preloaded) | 41–49 inches |
| Cable Curl Bar Attachment | 7–8 lbs | 3–3.6 kg | N/A | 24–30 inches |

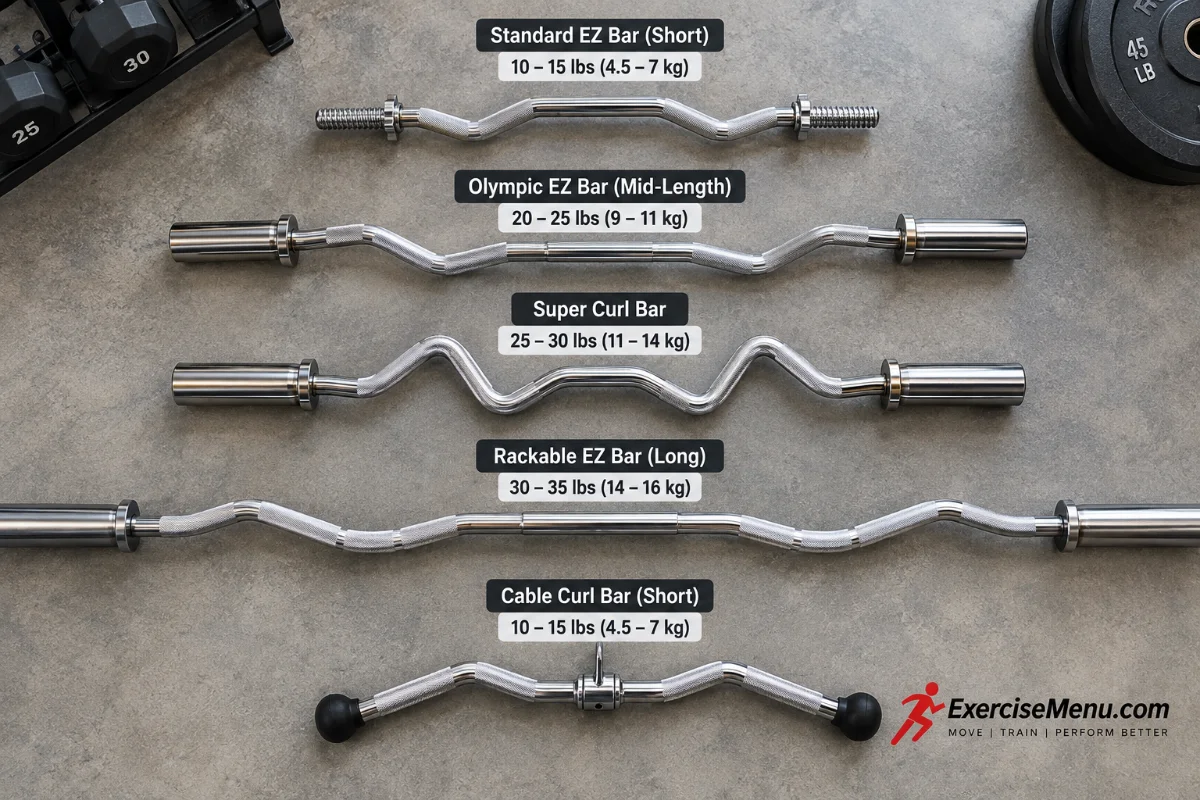

How Much Does Each Type of EZ Curl Bar Weigh?
Standard bars sit at 10–15 lbs, Olympic models at 18–25 lbs, and rackable versions at 30–35 lbs. The weight difference comes down to sleeve construction, shaft thickness, and total bar length.

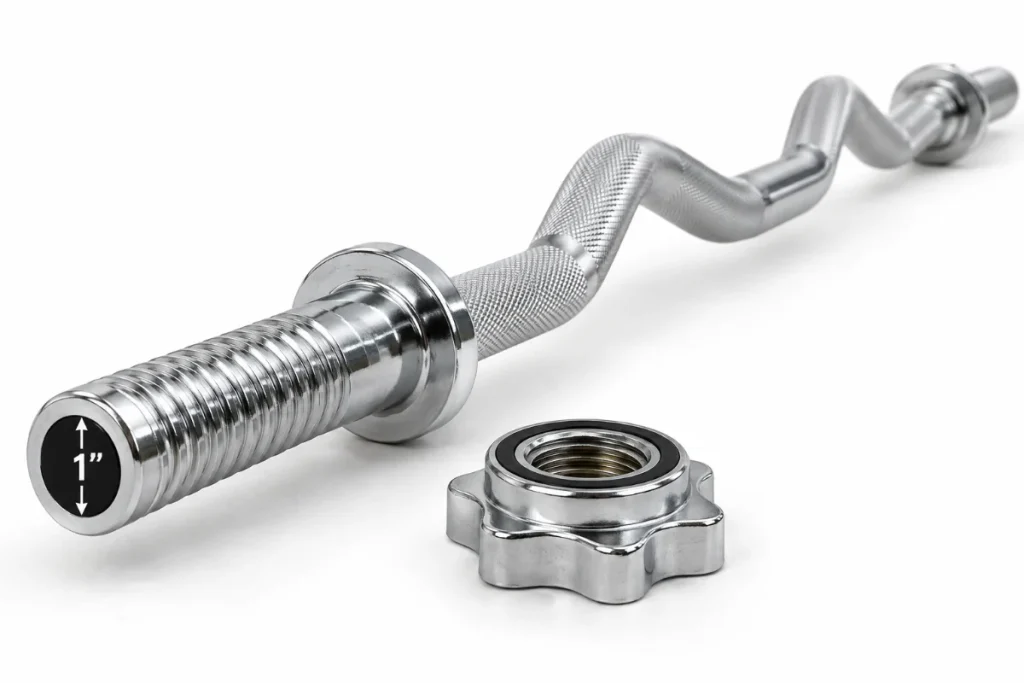

Standard EZ Curl Bar: 10–15 lbs (4.5–7 kg)
Standard EZ bars use 1-inch diameter sleeves that accept standard (non-Olympic) weight plates. They’re the lightest and cheapest option, found mostly in home gym starter kits and budget setups.
These bars run 45–48 inches long with threaded or smooth ends and spin-lock collars. A hollow standard bar can weigh as little as 10 lbs, while a solid steel version sits closer to 15 lbs. Weight capacity is usually under 200 lbs — more than enough for curls, but worth knowing if you plan to load heavier for rows.

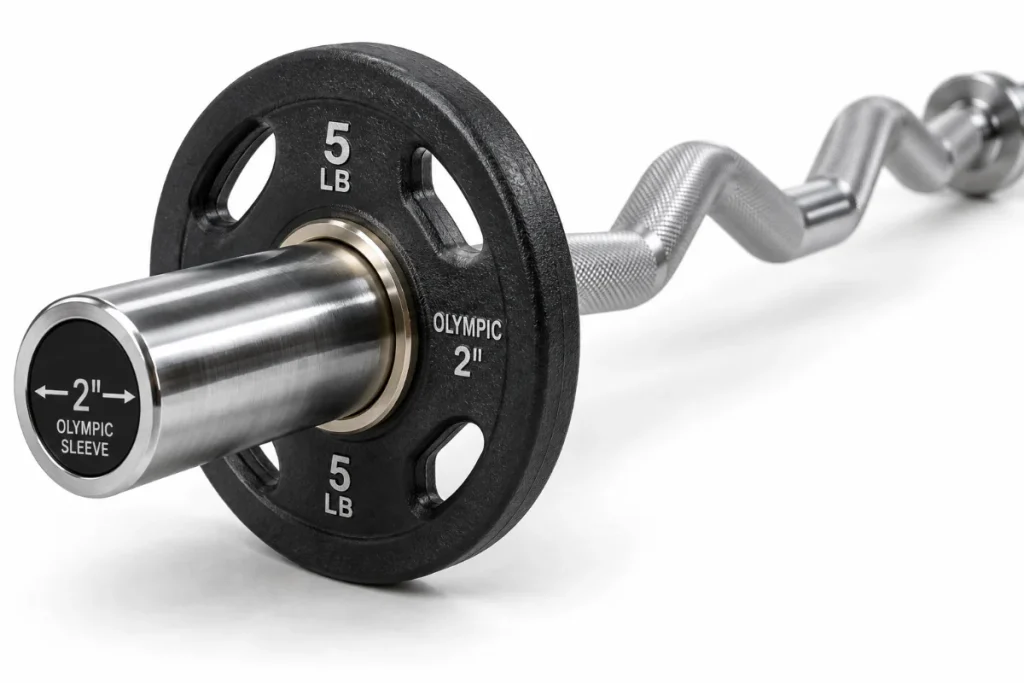

Olympic EZ Curl Bar: 18–25 lbs (8–11 kg)
This is the bar on preacher curl benches and arm stations in commercial gyms. Olympic EZ bars have thicker 2-inch rotating sleeves built for Olympic plates, the same plates used on a standard barbell.
The rotating sleeves reduce wrist torque during the lift, which is why every commercial gym uses them. Shaft diameter runs 28–30mm, and total length stays between 47 and 55 inches. Most Olympic EZ bars land between 18 and 22 lbs without plates.
Super Curl Bar: 17–25 lbs (7.7–11 kg)
A super curl bar has steeper bends in the shaft compared to a regular EZ bar. The more aggressive angles push your hands closer to a neutral (hammer) grip position. These bars run roughly 47–48 inches long and weigh in the same range as Olympic EZ bars (17–25 lbs), but the steeper camber changes the training stimulus — shifting more work toward the brachioradialis and forearms.

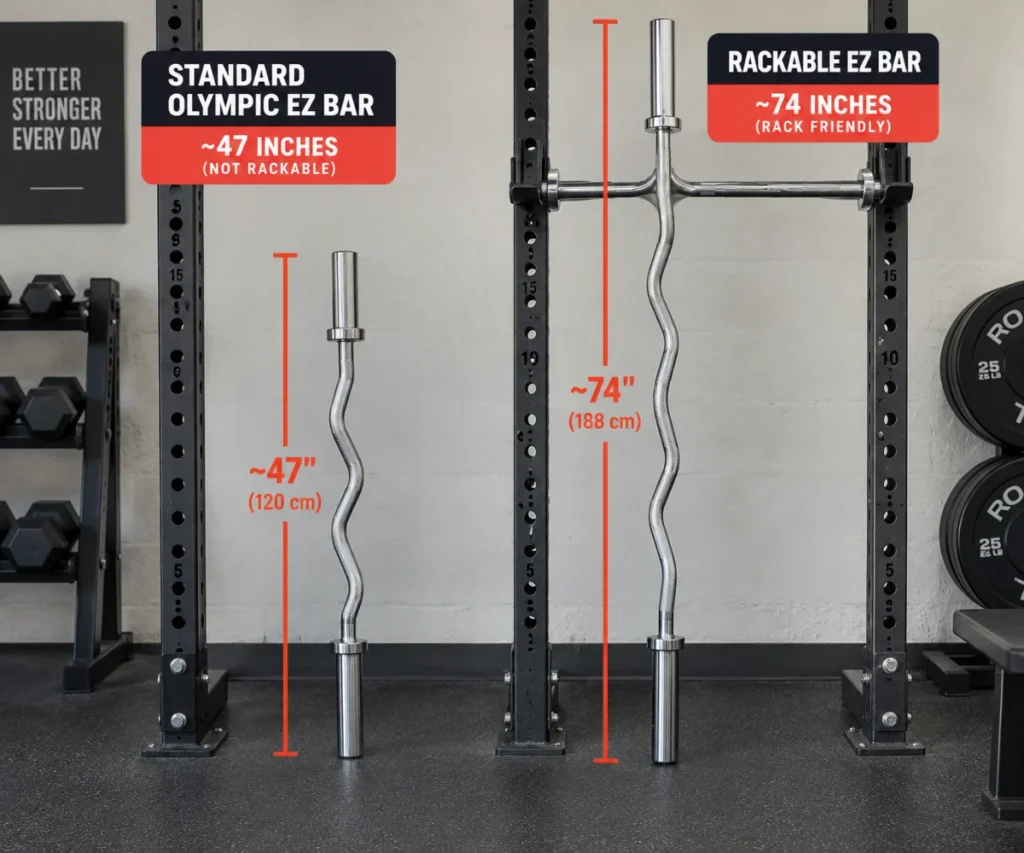

Rackable EZ Curl Bar: 30–35 lbs (14–16 kg)
Rackable EZ bars sit across squat rack J-cups like a full barbell. That means they’re longer (70–75 inches) and carry more steel than a standard curl bar.
The extra length means longer sleeves, which hold more plates and add material to the total weight. If you load heavy for close-grip presses or spider curls off a rack, you need to know this bar starts at 30+ lbs before you add a single plate.

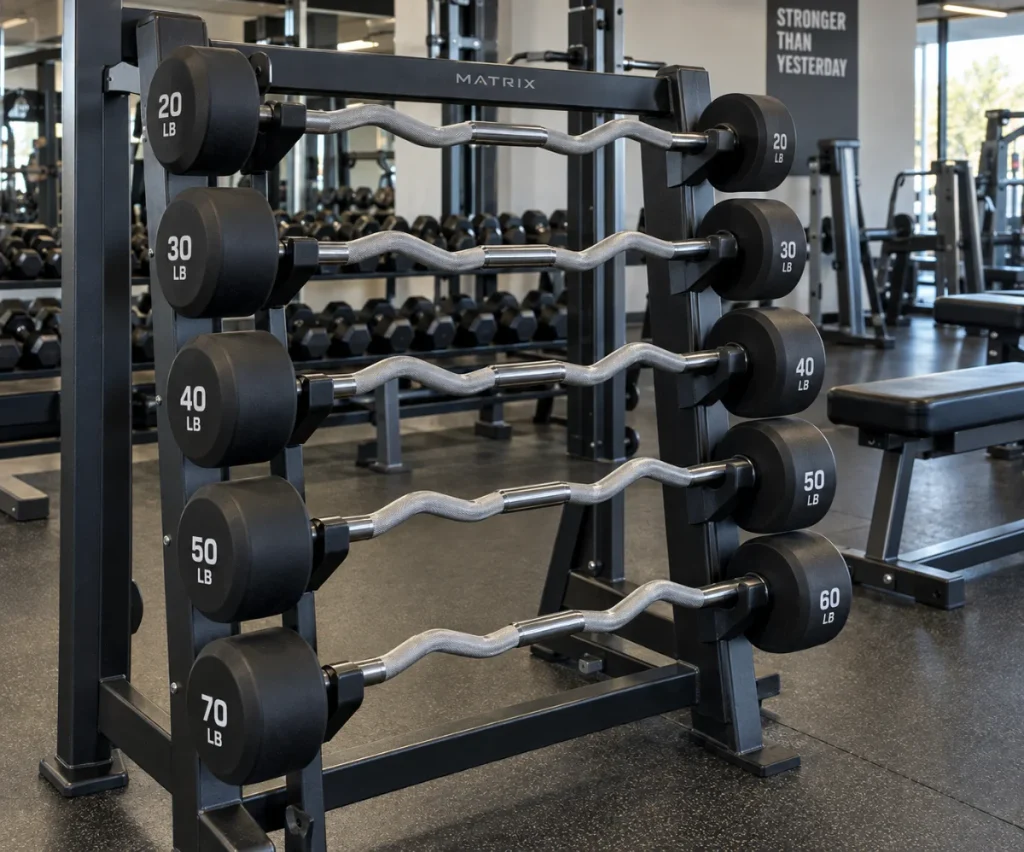

Fixed Weight EZ Curl Bar: 10–110 lbs (4.5–50 kg)
Fixed EZ bars come preloaded with rubber-coated weight discs that don’t come off. They usually sit on a dedicated gym rack, labeled by total weight in 10 lb increments (20, 30, 40, etc.).
The number on the rack IS the total weight, bar plus discs combined. No calculation needed. These are the thickest EZ bars, with shaft diameters around 30–32mm, and they range from 41–49 inches in length.
Cable Curl Bar Attachment: 7–8 lbs (3–3.6 kg)
Cable machine EZ attachments weigh 7–8 lbs. They’re shorter (24–30 inches) with a swivel head that clips onto a cable stack. The cable machine provides resistance, so the attachment weight gets added to whatever the stack reads, but most lifters don’t count it separately.
EZ Curl Bar Weight by Brand
Manufacturer-listed weights vary even within the same bar type. The table below pulls verified specs from popular brands.
| Brand | Type | Weight | Length | Max Load |
|---|---|---|---|---|
| CAP Barbell Standard | Standard | 10.5 lbs / 5 kg | 47 in | 200 lbs |
| Titan Olympic EZ Curl | Olympic | 14 lbs / 6.4 kg | 47 in | 200 lbs |
| Synergee EZ Curl | Olympic | 19 lbs / 8.6 kg | 47.25 in | 450 lbs |
| Body-Solid Olympic | Olympic | 19 lbs / 8.6 kg | 47 in | 300 lbs |
| PRx E-Z Curl | Olympic | 19 lbs / 8.6 kg | 47.5 in | 330 lbs |
| XMark EZ Curl | Olympic | 21 lbs / 9.5 kg | 48 in | 400 lbs |
| Elevens EZ Bar | Olympic | 22 lbs / 10 kg | 47 in | 330 lbs |
| Bells of Steel EZ Curl | Olympic | 22.5 lbs / 10.2 kg | 47.2 in | 300 lbs |
| Eleiko Curl Bar | Olympic | 26.5 lbs / 12 kg | 52 in | 1,100 lbs |
| Rogue Curl Bar | Olympic | 30 lbs / 13.6 kg | 54.25 in | N/A |
| REP Curl Bar | Olympic | 30 lbs / 13.6 kg | 55 in | N/A |
| Titan Rackable EZ Curl | Rackable | 31 lbs / 14.1 kg | 71 in | 400 lbs |
| REP Rackable Curl Bar | Rackable | 35 lbs / 16 kg | 74 in | N/A |
| Rogue Rackable Curl Bar | Rackable | 35 lbs / 16 kg | 74.75 in | N/A |
| Synergee Super Curl | Super | 20 lbs / 9 kg | 47.2 in | 400 lbs |
| CAP Olympic Super Curl | Super | 17 lbs / 7.7 kg | 47 in | 200 lbs |
Two bars labeled “Olympic EZ curl bar” can differ by 16 lbs — Titan’s weighs 14 lbs, Rogue’s weighs 30 lbs. The bar type alone doesn’t tell you the weight. The brand and build quality do.
How Do You Identify Which EZ Curl Bar You Have?
If your bar has no label, narrow it down in about 10 seconds by checking three things.

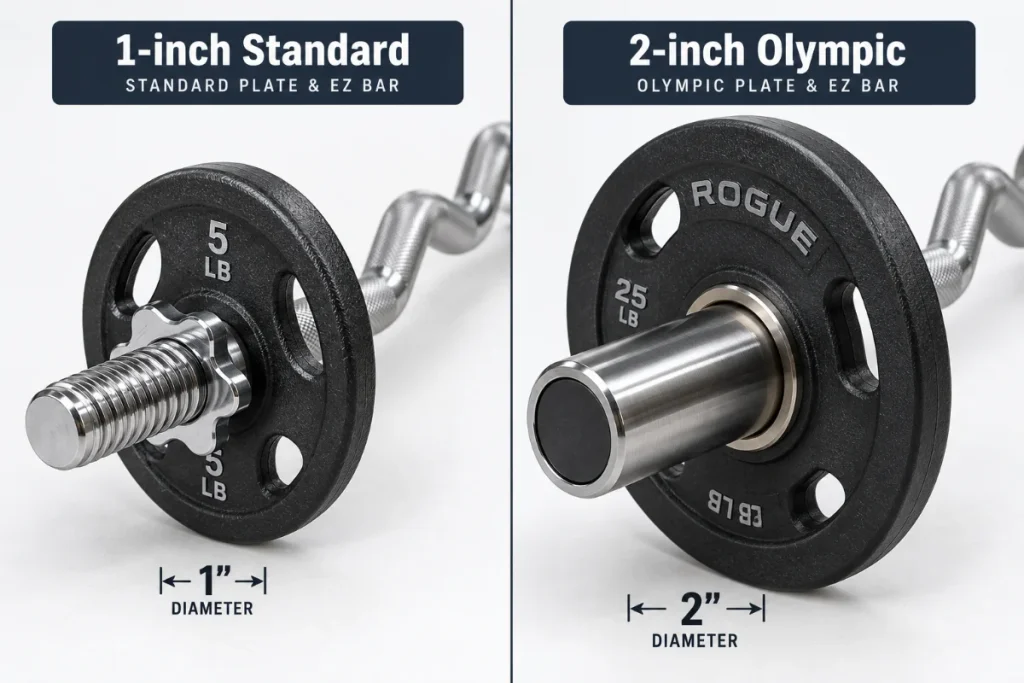

Sleeve diameter. Slide a plate onto the end. If a standard 1-inch hole plate fits snugly, it’s a standard bar (10–15 lbs). If you need a 2-inch Olympic plate, it’s an Olympic, super, or rackable bar.
Sleeve rotation. Grab the shaft and spin one sleeve. If it rotates freely, the bar uses bearings or bushings — that’s Olympic, super, or rackable territory. If the sleeve doesn’t spin, it’s a standard bar with threaded or smooth ends.
Total length. Stand the bar on its end. If it reaches your hip or lower chest (roughly 47–55 inches), it’s a non-rackable curl bar — most likely 18–25 lbs. If it reaches your chin or higher (70+ inches), it’s a rackable bar — 30–35 lbs.
The bar sitting on a preacher curl station in most commercial gyms is a 14–20 lb Olympic EZ bar. That’s the default unless the gym stocks premium equipment.

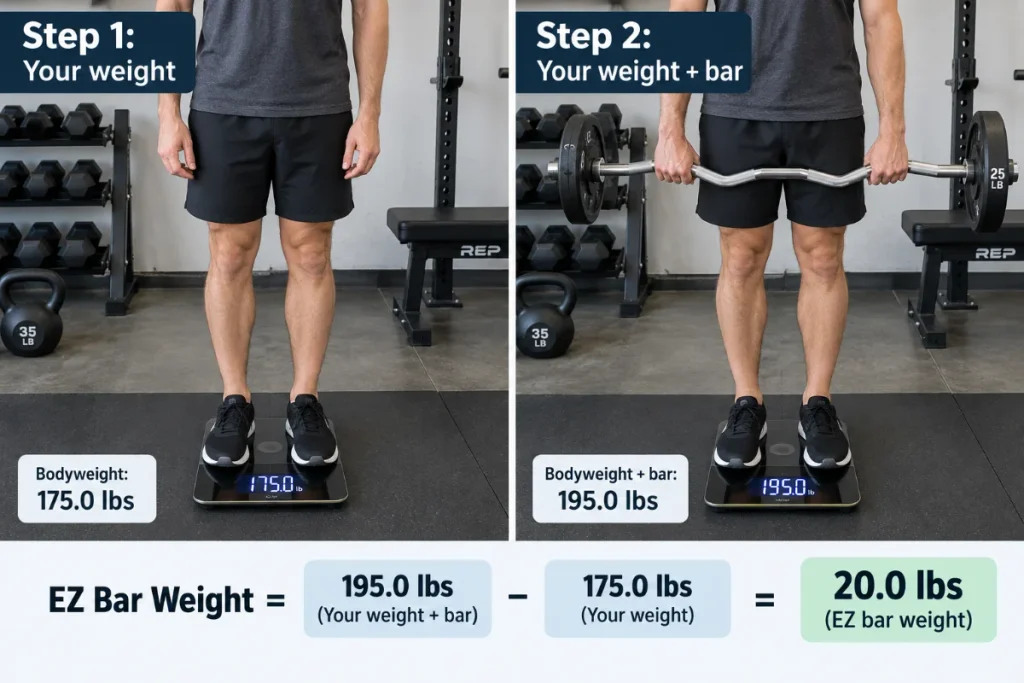

How Do You Weigh an Unlabeled EZ Curl Bar?
The bathroom scale method takes 30 seconds:
- Step on a bathroom scale and note your weight.
- Pick up the bar, hold it at your sides like a farmer carry, and step on the scale again.
- Subtract your bodyweight from the new number.
That difference is your bar weight. Works for any bar in any setting — you just need a scale.
Before weighing, check both end caps and the area near the sleeve collar. Some bars have the weight stamped or etched into the metal in a spot that’s easy to miss.
Why Does EZ Bar Weight Matter for Tracking?
On isolation lifts like curls, the bar accounts for 40–55% of your total load — far more than on compound movements where the plates carry most of the weight.
If you’re curling what you think is 50 lbs for 3 sets of 10, your volume load is 1,500 lbs. But if your bar is 5 lbs lighter than you assumed, your real load is 45 lbs — and your volume drops to 1,350 lbs. That’s a 10% tracking error from one wrong assumption.
The ACSM defines training volume as sets × reps × load, and considers it the best method for estimating work accomplished in resistance training (ACSM, 2009). On a squat at 225 lbs, 5 lbs off is a 2% error. On a curl at 45 lbs, it’s 11%. The smaller the total load, the more each pound matters.
The bar type also changes muscle recruitment. A 2018 study in PeerJ found that EZ bar curls produced higher biceps brachii and brachioradialis activation compared to dumbbell curls at the same relative load (Marcolin et al., 2018). If you switch between bar types without adjusting for the weight difference, your log stops reflecting what your muscles actually did.
FAQs
Is a curl bar 20 or 25 pounds?
Either could be right. An Olympic EZ bar from Synergee weighs 19 lbs, while one from Rogue weighs 30 lbs. The weight depends on the specific bar, not the category. Check end cap markings or weigh it on a scale.
Does the bar weight on a preacher curl station count?
Yes. The bar still has mass and you’re still moving it through the full range. Most gym preacher stations use a 14–20 lb Olympic EZ bar. If you curl with 25 lbs of added plates, your actual load is 39–45 lbs — not 25.
Does curl bar weight include collars?
No. Published bar weights refer to the bar alone. Standard spring clips add roughly 0.5 lbs total. Metal lock collars can add 1–2 lbs. If you train with collars every session, weigh them once and add that number to your log.
How do I calculate total weight on an EZ curl bar?
Add the empty bar weight to the plates on both sides. If your bar weighs 20 lbs and you load 10 lbs on each side, your total is 40 lbs. For volume tracking: multiply that total by your sets and reps to get your session volume load.
Can I use an EZ curl bar for squats or deadlifts?
Non-rackable EZ bars (47–55 inches) are too short to sit on a squat rack. Even rackable models (70+ inches) aren’t designed for squats or pulls — the cambered shaft makes symmetrical loading unstable under heavy compound movement. Use a standard barbell for those. If you need specs on standard bars, How Much Does a Barbell Weigh? is coming soon on ExerciseMenu.
Do all gyms have the same EZ curl bar?
No. Gym chains and independent gyms buy from different brands. One gym might stock a 14 lb Titan bar and another a 22 lb Bells of Steel. The only way to know your gym’s specific bar weight is to check the brand stamp or weigh it yourself. Don’t assume the bar at a new gym matches the one you’re used to.
Medical Disclaimer: If you have an existing wrist or elbow injury, check with a doctor or physiotherapist before loading a new bar type for the first time.
